Properties
freeze thaw resistant *
radiant heating compatible *
uv resistant *
heat resistant *
Usage
interior wall *
exterior wall *
interior floor *
light residential *
backsplash *
exterior floor *
fireplace surround + hearth *
shower wall *
heavy residential *
entryway *
mudroom *
bathroom floor *
kitchen floor *
light commercial *
heavy commercial *
shower floor *
Overview
| description | rating |
| surface type | Unglazed |
| finish type | Unfinished |
color variation
for more information, see our tile variation & imperfections guide |
level 4: heavy |
texture variation
for more information, see our tile variation & imperfections guide |
level 2: slight |
size variation
for more information, see our tile variation & imperfections guide |
level 2: medium |
| dimensions | 2½" x 8" x ¾" |
| water absorption | 5 hr boil: avg. 9.0% / 24 hr cold soak: avg. 5.7% / Saturation Coefficient: avg. 0.64 |
| dcof | testing has not yet been performed, but the textured, unglazed surface will provide slip resistance |
| Pieces per lft | 4.5pcs/lft |
| Weight per lft | 6.98 lbs |
| Pieces per box | 16 pcs/box |
calculated using clé's recommended grout joint size of 3/8"
Read before you buy
what are the key differences between standard issue and forge?
standard issue bricks are utilitarian and durable, well suited to almost any space - both interior and exterior. the standardized clay surface provides a uniform, clean modern look.
each piece of the forge line has been manufactured with an artisan approach. manipulated at different stages in production, the textural surfaces create a visceral experience and raku-industrial finish.
american made, both standard issue and forge bricks emphasize classic, industrial style and are manufactured to last and improve with age.
do foundry flats meet standard thin brick specifications?
foundry flats shall be selected by the architect/designer/owner from manufacturer’s standard sizes, shapes and glazes. foundry flats meets or exceeds astm-c1088 type tbs or tba
do i need to seal foundry flats bricks?
due to the texture of the bricks you must apply sealant or a grout release prior to grouting to minimize risk of grout haze and to allow for an easier clean up. however, if you choose to use grout as a design element then you don’t need to seal or use grout release prior to grouting. please see more information on how to do this under the separate foundry flats trade resource.
although unglazed thin bricks do not have to be sealed after grouting for dry applications (Interior Walls, Fireplace Surrounds), it is recommended that they are sealed when used on wet areas like backsplashes, showers, bathrooms and floor installations. grout lines and the brick surface should be sealed as the final step of installation for the above mentioned applications.
Exterior Walls require vertical weather flashing and waterproof, penetrating sealant. Exterior Floors must be installed above grade with waterproof, penetrating sealant. with application of miracle sealant, these bricks can have resistance to freeze/thaw issues.
for more information about sealing please see our foundry flats material guidelines.
do you offer trim for your foundry flats bricks?
we offer corner pieces for each of the bricks included in our foundry flats line. as for trim, at clé we follow the international model of no trim and highly recommend our clients to do the same. below are the trim alternatives we recommend for this collection.
- if your project needs to turn a corner either inwardly or outwardly, mitering the bricks to meet seamlessly in a corner gives it the cleanest, crafted finish.
- a visible brick edge can be sanded to make the side match the main surface of the brick.
- another way to complete your tiling is to run a bead of caulk or grout along the exposed brick edge.
- if you have a painted surface next to your brick, you can choose to paint the outer edge of the brick to match the painted surface.
- like with any of our bricks, you can also build out the sheetrock so that the surface of the finished sheetrock is flush with the surface of the brick.
-for more detailed recommendations about trim, please see our trim guide.
how do i take care of my foundry flats bricks?
over time, a natural patina will occur on floors as they are maintained and naturally wear. bricks and grout lines can be cleaned using mild, ph neutral soaps with hot water and a bristled cleaning brush—this should be sufficient for most cleaning and stains - test before general use.
always avoid harsh chemicals and acidic or alkaline cleaning products. do not allow water and liquids to sit on the brick surface. miracle tile & stone cleaner is effective as an ongoing maintenance cleaner and is gentle for everyday use.
if using a topical sealant, bricks will need periodic stripping and resealing. please refer to a professional for this maintenance. single coat reapplication of the penetrating sealant is required at least once a year.
see the foundry flats material guidelines for more information.
foundry flat colors vary both in texture, color and size from brick to brick, with some individual bricks more than others. clé celebrates this variation resulting from the production methods and raw material choices. when specifying foundry flats, if color consideration is paramount, always work from a sampling of 3 or more bricks, which represents the range of color you can expect on the job.
tiles may be exposed to moisture and/or condensation during production or shipping which may affect the color of the tiles once received. setting tiles out to dry prior to installation will return return the color to normal.
due to the color and shade variations, it is very important to blend the bricks from all boxes once they arrive and place them in their installation area to ensure you have the layout you want before installing. do not install without blending bricks from all boxes.
foundry flats forge bricks are listed 'level 2 medium' for size variation. the color and texture variation ratings vary from tile to tile, and therefore are individually rated.
see illustrations and individual tile ratings in the technical specifications section above, and read more about the ratings in our tile variation and imperfections guide.
how will my foundry flats forge samples compare to my actual order?
as noted in the variation and add on orders sections of our faq, color and size variation between production batches (or kiln loads) of foundry flats forge bricks, in addition to variation from brick to brick, is to be expected given the handcrafted nature of the product. this makes it unlikely that your sample will be a perfect match with your actual order.
industry standard suggests adding at least 15% overage due to brick cuts, potential breakage, or future repairs.
for more information related to ordering and shipping, please be sure to visit our shipping and returns and delivery information resource pages.
Grout Recommendations
clé recommends a ⅜” grout joint with this collection.
clé recommends non-pigmented cementitious sanded grout to reduce the risk of grout haze and staining.
clé recommends using mortar and grout that comply with the ANSI A118 or ISO 13007 classifications suitable for your project. Please consult with your installation professional to make these determinations.
grout color selection is always up to our client and/or their design professional. however, clé is often asked for our opinion on best grout selections for our tiles. and due to the large array of grout colors that are now available, clé would like to offer this general guideline on a grout color selection for any of your clé tiles.
first, have your contractor complete your tile installation, except for the grout portion.
next, when ready to grout, ask your contractor to bring all of the grout color charts from his preferred grout manufacturers, for your review.
lastly, choose a time of day when you are most pleased with the lighting in your space (either natural lighting, installed lighting or a blend of both). during that lighting and time of day, select the grout color that best matches your tile selection.
if you are working with patterned tiles, highly color-variegated tiles or a combination of tiles, we recommend that you follow the above recommendations—but match your grout to the color in your pattern that you would like to accentuate.
due to the texture of the bricks we recommend applying a sealant or a grout release prior to grouting to minimize risk of grout haze and to allow for easier clean up. given that it will be difficult to remove grout from the textured surface of brick even when using a grout release, we also recommend that a grout bag or gun be used for grouting and to work carefully.
important: please note that a 3/8" grout joint size yields 6.54 bricks per square foot. should your project require a smaller joint, keep in mind that additional bricks will need to be ordered as our checkout calculations are all based on 6.54 bricks per square foot.
here are the pieces per square foot for a few other common grout joint sizes:
1/8” grout joint - 6.97 bricks per square foot
1/4” grout joint - 6.75 bricks per square foot
pieces per square foot comes to 7.2 when no grout joint is taken into account
for more information about grouting please see our foundry flats installation & maintenance guide.
Dimensions

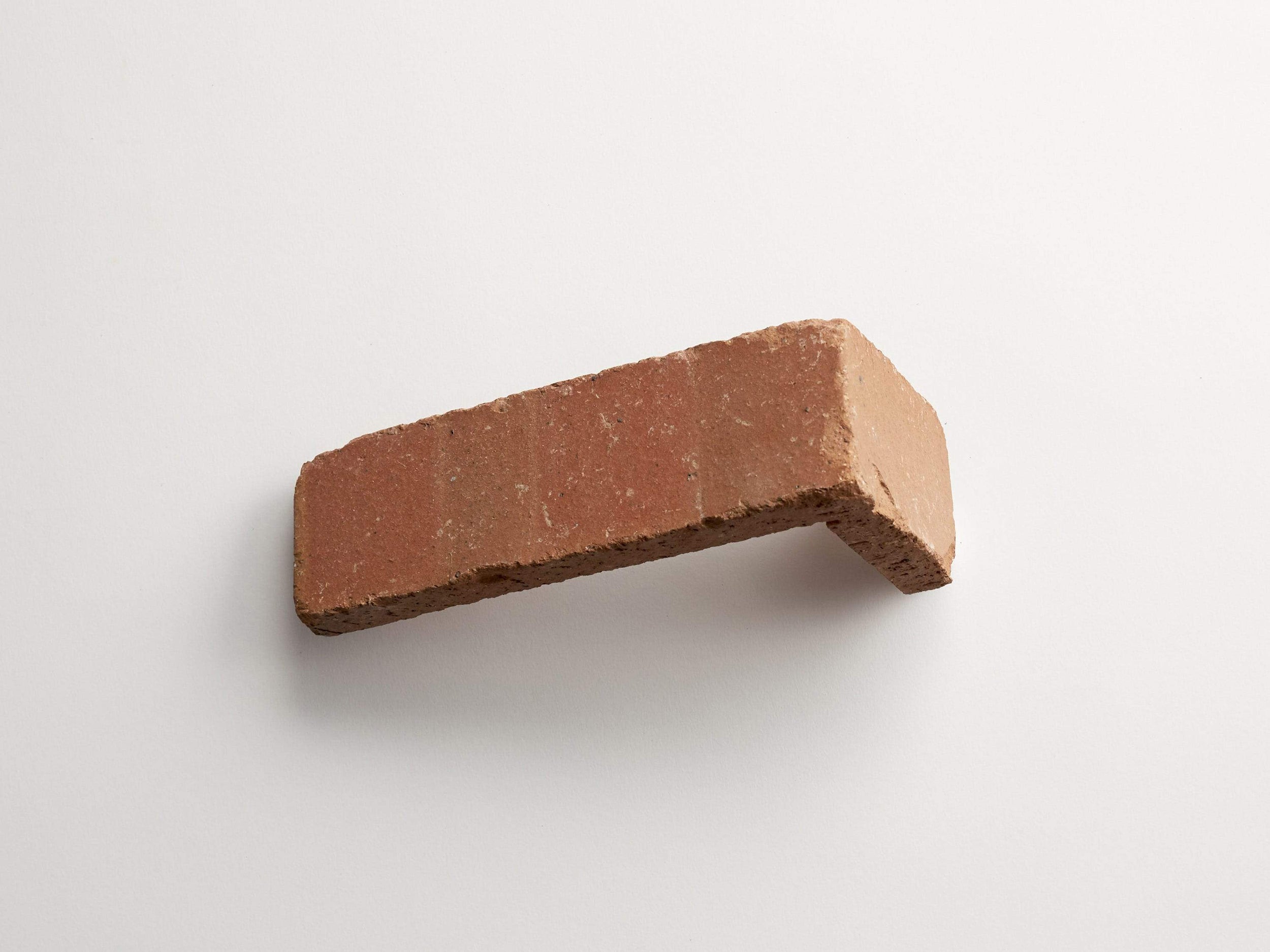

brick - 2½" x 8" x ¾"* corner - 2½" x 8" x 3¾"* *with the exception of factory which has a ½” thickness
